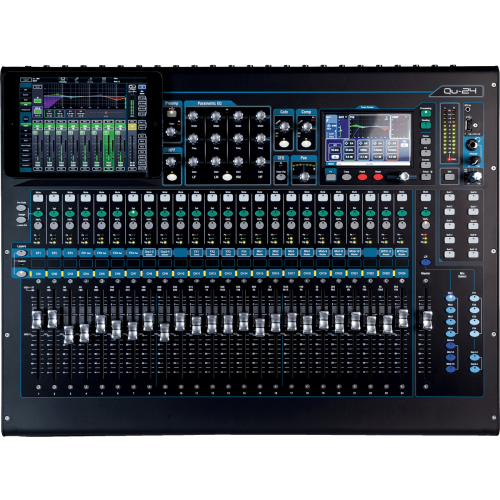

Allen & Heath QU-24 mixing console

Allen & Heath QU-24 mixing console

With 32 sources in the mix including stereo inputs and returns, the QU
-24 is the equivalent of a 38-channel analog console and has very extensive external equipment (30 gates, 50 compressors, 20 graphic equalizers and 4 stereo effects). Compared to its little sister the QU
-16, the QU
-24 offers additional user buttons, a full matrix system, and two stereo groups. All groups can be used in Mix mode, allowing the console to offer up to 9 monitor mixes (4 mono + 5 stereo). • 24 mono inputs (TRS + XLR) and 3 stereo inputs (TRS) • 4 stereo effects returns and 4 effects engines • 16 buses • 20 mix outputs and 1 AES digital output • Up to 9 monitoring mixes (4 mono and 5 stereo) • 2 stereo groups and 2 stereo matrices • 1 talkback microphone input • 4 mute groups and 4 DCA groups • 10 user buttons • 5" 800x480 touchscreen with 16 million colors • 25 ALPS motorized faders, providing instant access to all channels and masters • Trim, polarity, HPF, gate, insert, 4-band parametric EQ, compressor, and delay on all inputs • Insert, 1/3-octave graphic EQ, compressor, and delay on Main LR and Mono Mix outputs • Insert, 4-band parametric EQ, compressor, and delay on Stereo Mix outputs • High-end 24-bit AnalogiQ preamps with very low latency, ensuring extremely low distortion • 4 stereo effects engines, effects bank derived from professional iLive effects • Qu
-Drive: recording and playback of all 18 tracks and stereo tracks directly from a USB stick or external hard drive • USB 32x30 audio streaming: up to 32 selectable tracks can be streamed to a PC or Mac. Returns from the PC or Mac can be assigned to input channels. Plug & Play on Mac, MDM and ASIO drivers for Windows • MIDI controller for DAW software via the USB interface • Audio remote control via dSNAKE cable for connection to an AB168, AR2412 or AR84 audio rack • Compatible with the ME personal monitoring system: connection via the dSnake port of the console or an AR2412 audio rack • Qu application
-Pad for remotely controlling the console with an iPad via Wi-Fi
-Fi (Wi-Fi router)
-Fi not included) • Application Qu
-You offering personalized feedback on iPhone, iPad, iPod Touch and Android. • Qu application
-Control: control interface without
- User-customizable interface on iPhone, iPad, or iPod Touch. Offers up to 5 screens with 15 control widgets each, perfectly suited for applications such as selecting background music sources, stage monitors, or overall levels. • Automatic Microphone Mixer (AMM) to help the sound engineer manage the level of multiple microphone inputs. Up to 16 microphone inputs can be mixed simultaneously, and each channel can be assigned a priority. • Channel ducking on each input • Spectrogram to aid in eliminating feedback • Real-time analyzer with peak indicator • High-contrast chrome finish, like the GLD series, for an unparalleled mixing experience • iPad stand on the upper left of the console • Rack-mountable with the dedicated rack kit • Weight and dimensions: 14 kg, 632 x 500 x 186 mm
