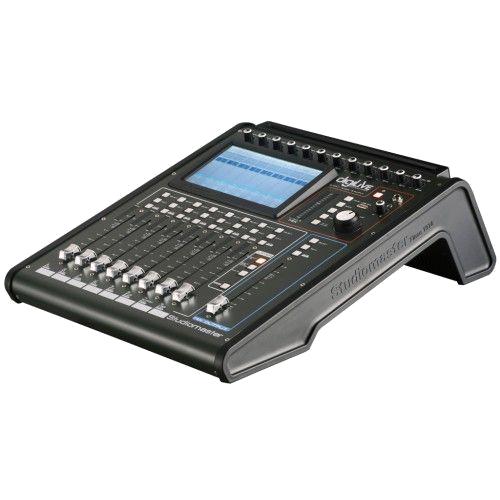

Studiomaster DIGILIVE16 mixing console

- Analog inputs: 16 inputs, 12 professional microphone input channels (XLR), 2 stereo line inputs (jack)
- Analog Outputs: 16 internal buses, 6 assignable outputs (XLR, balanced), 2 master outputs (XLR, balanced), 2 monitor outputs (jack, TRS), 1 headphone output (jack, stereo)
- Digital inputs and outputs: S/PDIF input/output (RCA), AES output (XLR), 2 USB ports
- Faders: 9 motorized 100 mm faders
- Effects: 8 internal effects buses, DSP: 40-bit floating point, SHARC processor
- Display: 7" high-resolution touchscreen or full control via tablet
- Operating system: Android
- Remote control: in real time via iOS application
- Built-in stereo player/recorder
- Sampling frequency: 48 KHz
- Analog to digital/digital to analog conversion: 192 KHz, 24 bits
- Power supply: 90
- 240 V, 50/60 Hz, input voltage 12 V DC
- Dimensions: 357 x 480 x 145 mm
